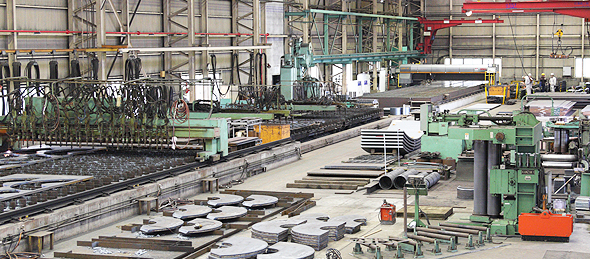

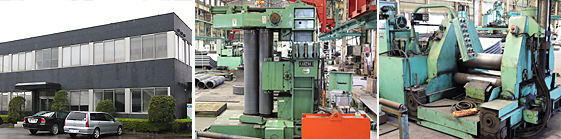

Integrated processing is available from laser and fusion processing to mechanical processing and welding- processing that takes maximum advantage of flexibility. In particular, the roll-forming machine can perform diverse types of roll forming and deliver finished products with consistently stable quality.
| Name | Unit | Description |
NC Tracer Automated Shape Cutting Machine KT-650 |
1 | 30 Gas cutting nozzles |
Eye Tracer (Robocut System Q mounted type) Automated Shape Cutting Machine
|
2 | 10 Gas Cutting nozzles, 2,438 X 9,144 Max width 2,438 |
Angle Bender NK-3 and others |
3 | Capacity L-shape steel outward bending 13 X 100 X min lengthφ1,000 flat steel outward bending 25 X 100 min lengthφ2,000, others |
Edge Arm Forming Roll |
1 | Roll long surface 800, roll length Upwards φ190 Downwards φ150 X 2 |
Vertical Bending Roll TPV-14 X 1550 |
1 | 3 Rollers roll Capacity: SS400/t13 X 1500w |
Horizontal Bending Roll TPB-25 X 1100 |
1 | Roller roll Capacity: SS400/t25 X 1000w |
4KW Laser LMXVII45-TF4000E |
1 | Effective cutting length 4,200 X 25,900 |
